Technicial Specifications

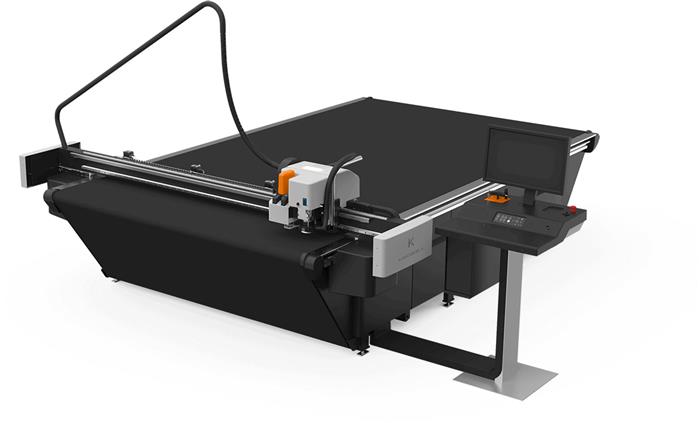

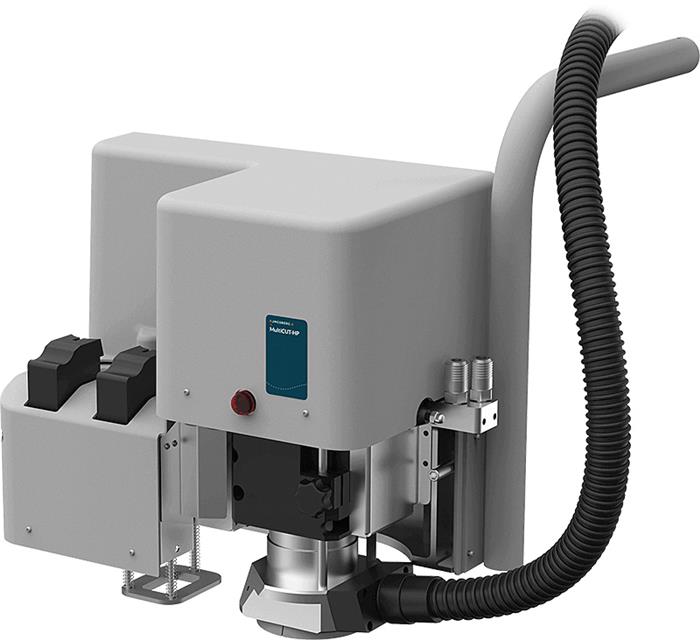

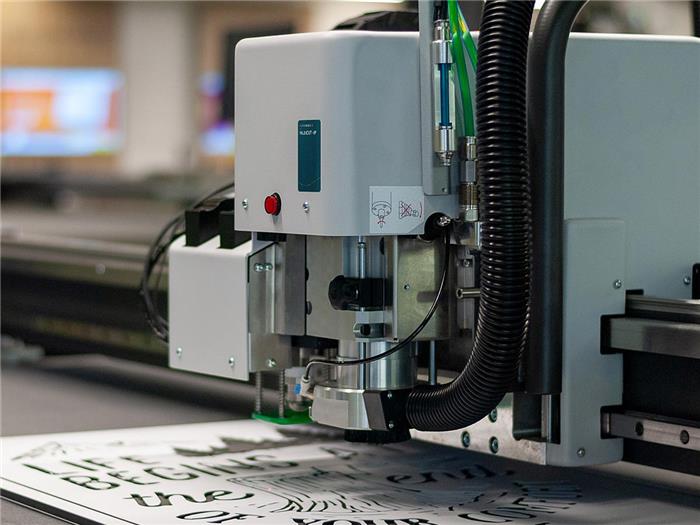

Product Code KONGSBERG X

Product Group Cutting Tables

Feeding Type Manual, Automatic, Flatbed, Tray

Connection Type Ethernet

Work area, all tools (mm) X20 : 1680 x 1270
X22 : 1680 x 2190
X24 : 1680 x 3200
X44 : 2210 x 3200
X46 : 2210 x 4800
X48 : 2210 x 6550

Max. material size (mm) X20 : 1740 x 1750
X22 : 1740 x 2570
X24 : 1740 x 3575
X44 : 2270 x 3575
X46 : 2270 x 5250
X48 : 2270 x 6930

Max. material width w/ conveyor system (mm) X20 - X22 - X24 : 1680
X44 - X46 : 2210
X48 : YOK

Overall dimensions w/ front panel (mm) X20 : 2780 x 2450
X22 : 2780 x 3040
X24 : 2780 x 4050
X44 : 3300 x 4050
X46 - X48 : YOK

Overall dimensions w/ RWS (1)(2) (mm) X20 : 3600 x 2160
X22 : 3600 x 2950
X24 : 3600 x 3960
X44 : 4070 x 3960
X46 : 4070 x 5640
X48 : 4070 x 7320

Weight (kg) X20 : 455
X22 : 525
X24 : 630
X44 : 815
X46 : 1150
X48 : 1485

Position accuracy (3) (μm) X20 - X22 : ±200
X24 : ±250
X44 : ± 300
X46 : ± 350
X48 : ± 400

Repeatability (μm) X20 - X22 - X24 : ±50
X44 - X46 - X48 : ± 60

Maximum speed (m/min) Kongsberg X Edge : 30
Kongsberg X : 50

Maximum acceleration Kongsberg X Edge (m/s²) 3

Maximum acceleration Kongsberg X (4) (m/s²) X20 - X22 - X24 : 5.6
X44 - X46 - X48 : 5.4

Vertical tool force Standard tool stations: 220 N. PowerHead crease station: 500 N

No. of vacuum sections X20 - X22 : 2
X24 - X44 - X46 - X48 : 4

Standard traverse clearance (5) 50 mm or 95 mm, depending on Application Kit and model size

Optional traverse clearance (5) High clearance 95 mm, available for models with 50 mm clearance as standard

Notes (1) Measured with revolving workstation in its standard position
(2) Conveyor feed option will add marginally to the length dimension
(3) Applies across total work area, with standard traverse clearance
(4) May be reduced with certain tool- and configuration combinations
(5) Measured without cutting underlay. Max. cutting thickness is tool dependent. Ref. to Technical Specification booklet for further details
